Our conductors are manufactured with precision to ensure maximum efficiency, durability, and performance. They are suitable for power transmission and distribution applications, ensuring reliability even under extreme conditions. With high conductivity and mechanical strength, our conductors are designed to meet national and international standards.

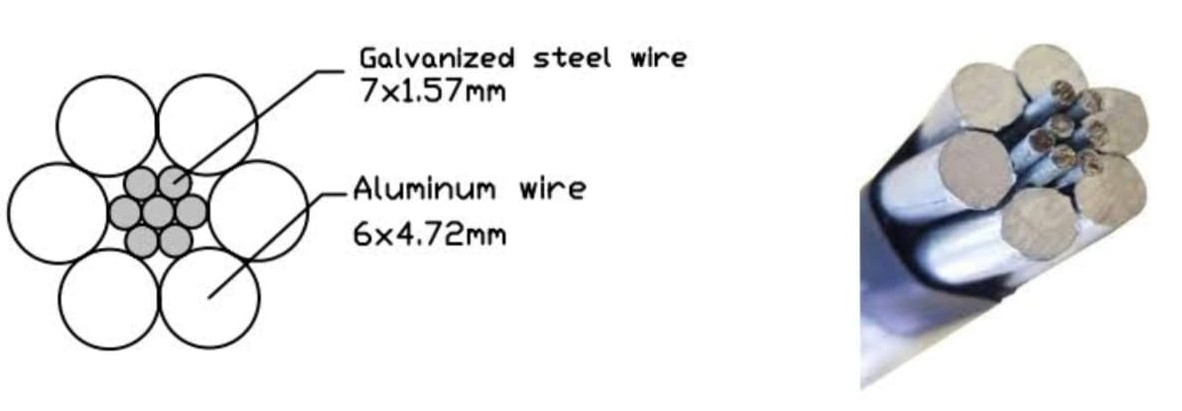

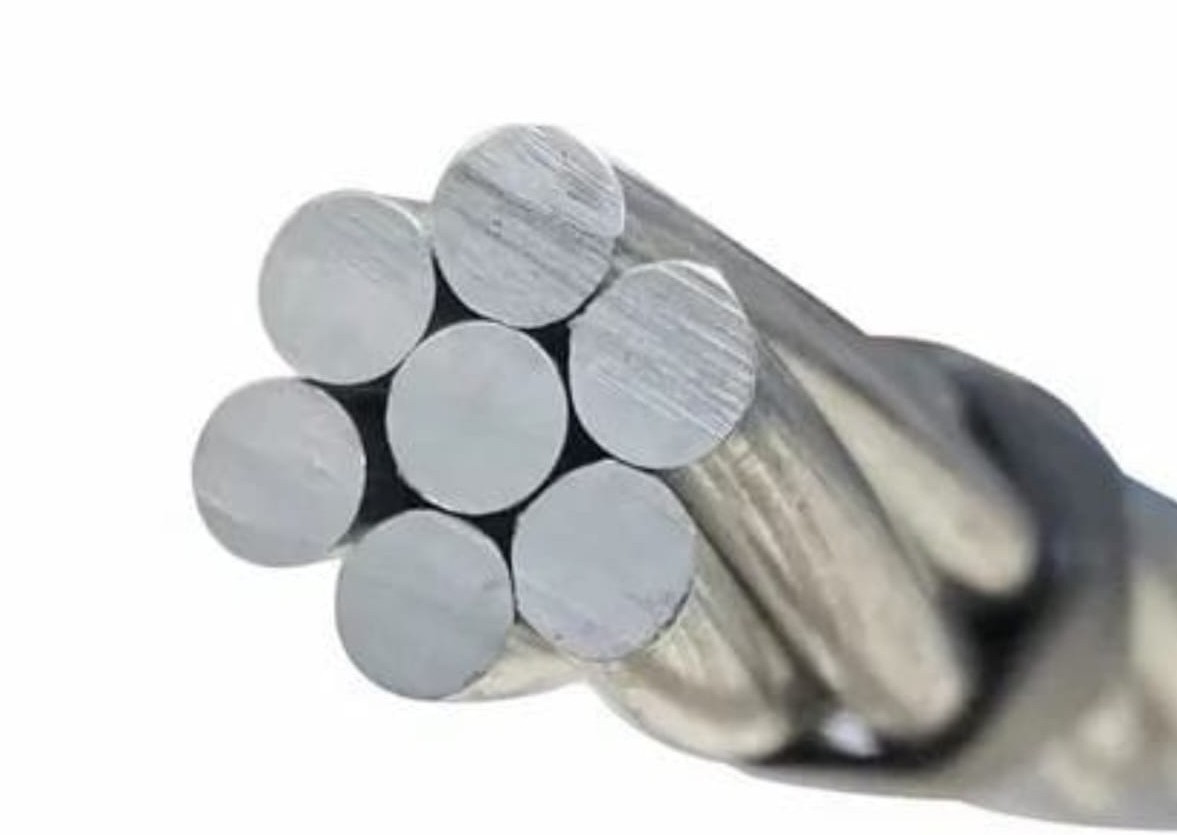

ACSR (Aluminium Conductors Steel Reinforced) is a composite, concentrically stranded conductor in which the lightweight and good conductivity of aluminum are combined with the high tensile strength of steel.
ACSR has long been widely used as overhead high-tension transmission lines and has an established reputation for economy and dependability.
| Features: |
|
|---|---|
| Material: | Aluminium Conductor with Steel Reinforcement (ACSR) |
| Applications: | Used in overhead power distribution and transmission lines |
| Size Range: | From 10 sq. mm up to 100 sq. mm (as per specifications) |
| Cable Word | Normal Sq. mm | Stranding No. Dia | Diameter | Calc. electrical resistance at 20°C (ohms/km) | Approx calc. breaking load (KN) Cond. | ||||
|---|---|---|---|---|---|---|---|---|---|
| Al. | St. | Complete Conductor dia mm | Steel Core Dai mm | ||||||
| No. | Dia in mm | No. | Dia in mm | ||||||
| MOLE | 10 | 6 | 1.5 | 1 | 1.5 | 4.50 | 1.5 | 2.780 | 3.97 |
| SQUIRREL | 20 | 6 | 2.11 | 1 | 2.11 | 6.33 | 2.11 | 1.394 | 70.61 |
| WEASEL | 30 | 6 | 2.59 | 1 | 2.59 | 7.77 | 2.59 | 0.929 | 11.12 |
| RABBIT | 50 | 6 | 3.35 | 1 | 3.35 | 10.05 | 3.35 | 0.552 | 18.25 |
| RACCOON | 80 | 6 | 4.09 | 1 | 4.09 | 12.27 | 4.09 | 0.371 | 26.91 |
| DOG | 100 | 6 | 4.72 | 7 | 1.57 | 14.15 | 4.71 | 0.279 | 32.41 |
